110 cm Tunnel Elevator Fireplace Chamber

110 cm Tunnel Elevator Fireplace Chamber

Regular price 76,900.00TL
Regular price 84,590.00TL Sale price 76,900.00TL
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

ℹ️ PRICES ARE VALID ONLY FOR THE FIREBOX (BURNER) '' You can contact us for pricing including installation. ''

Product Details

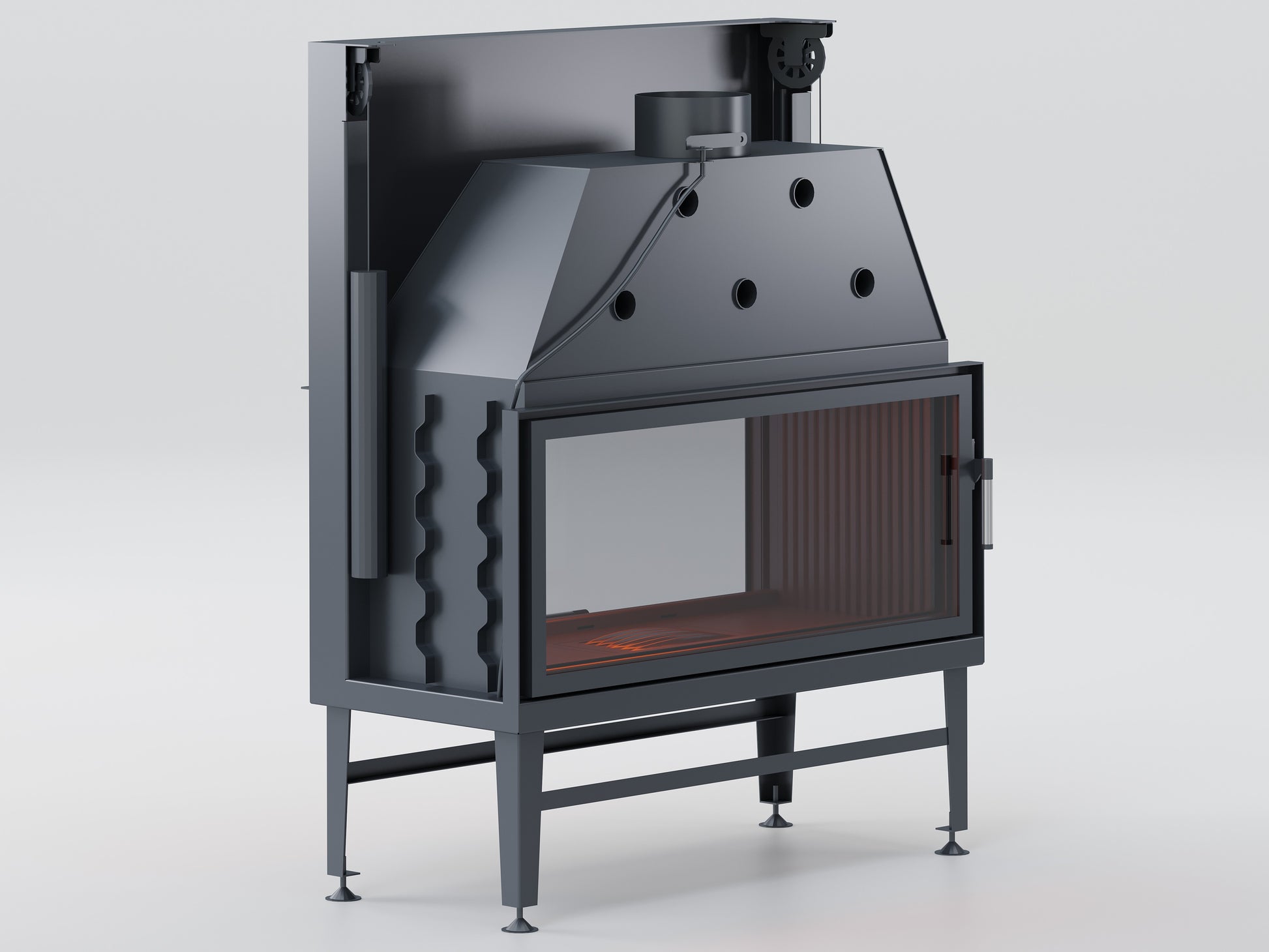

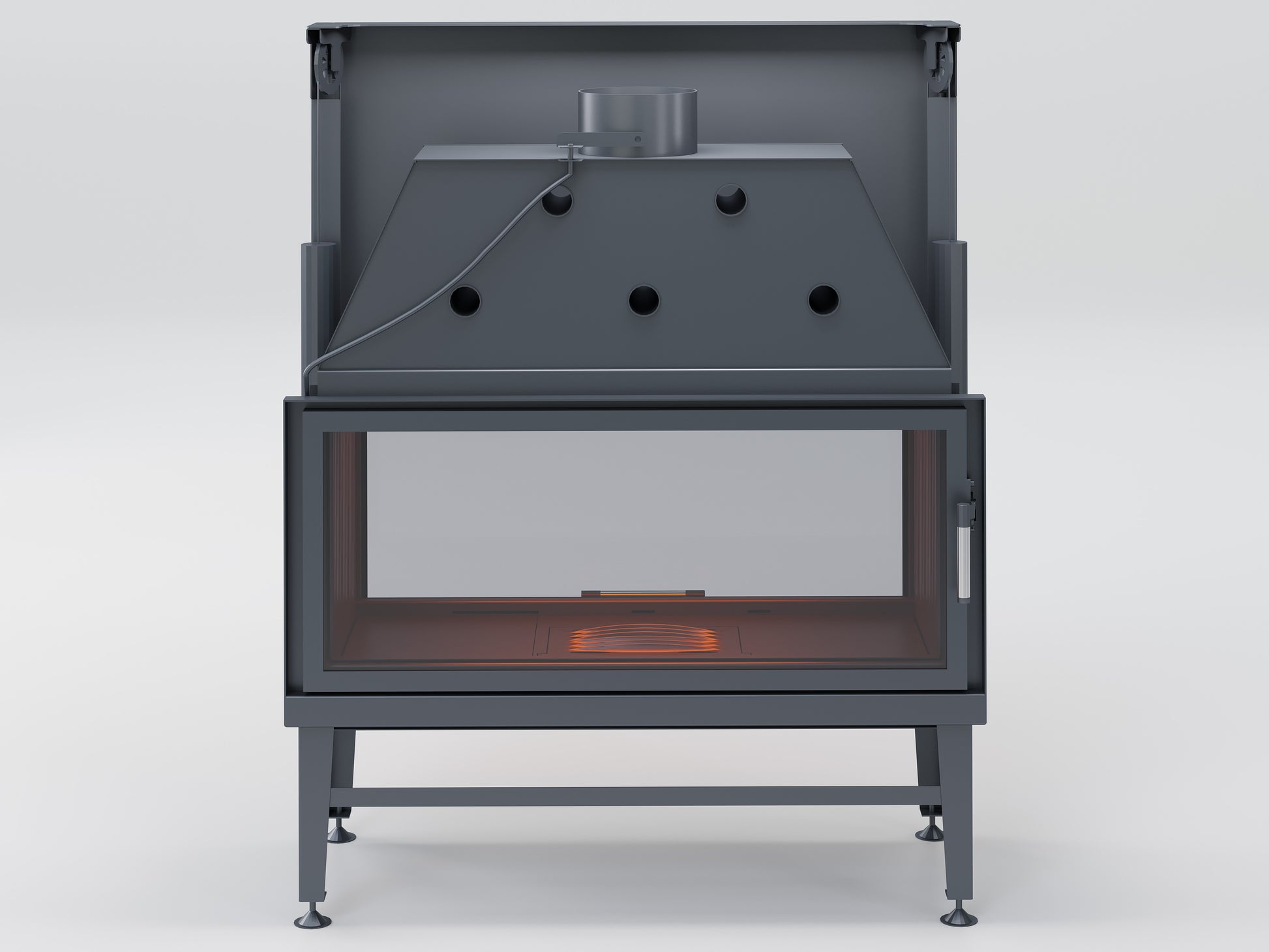

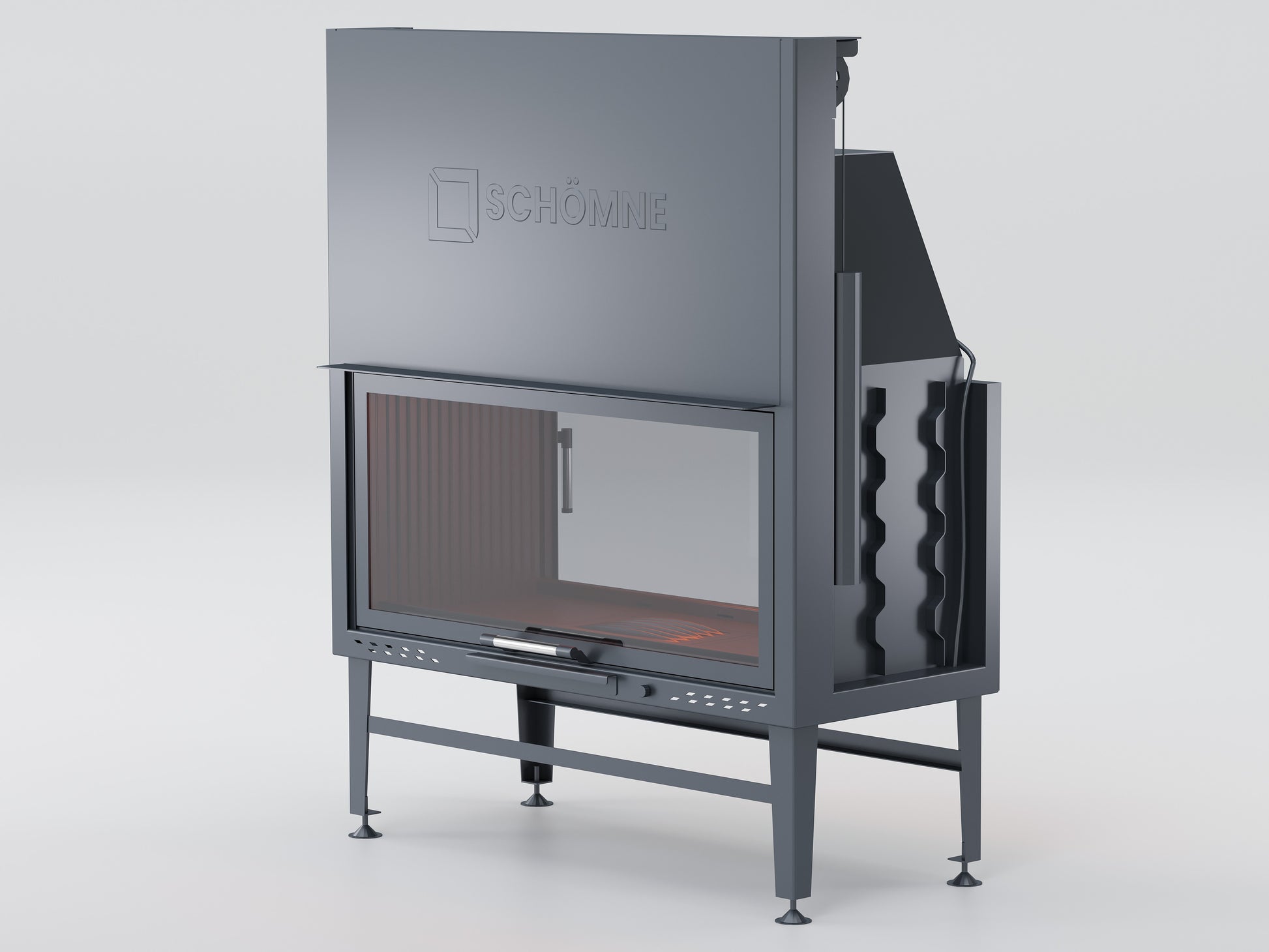

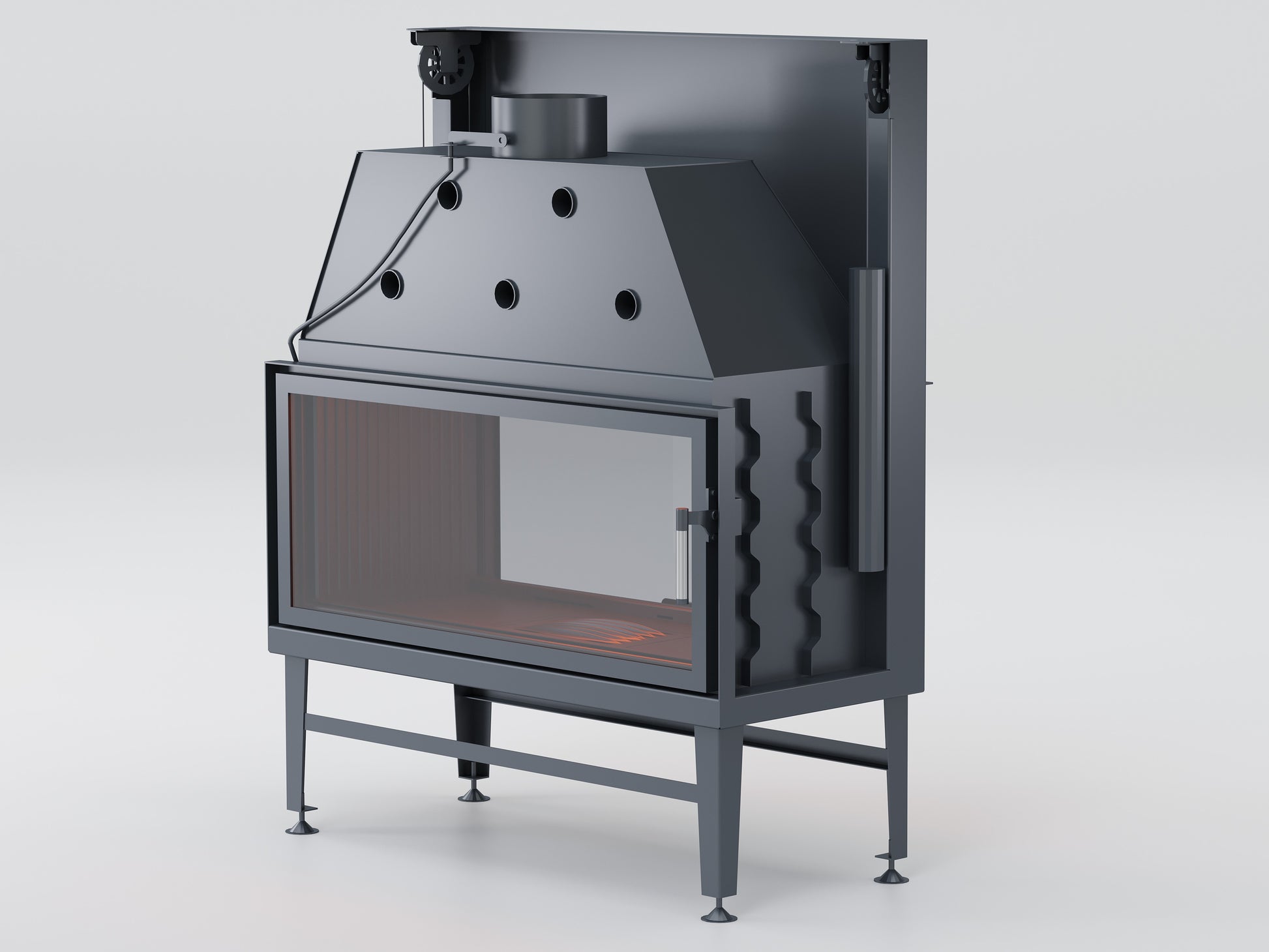

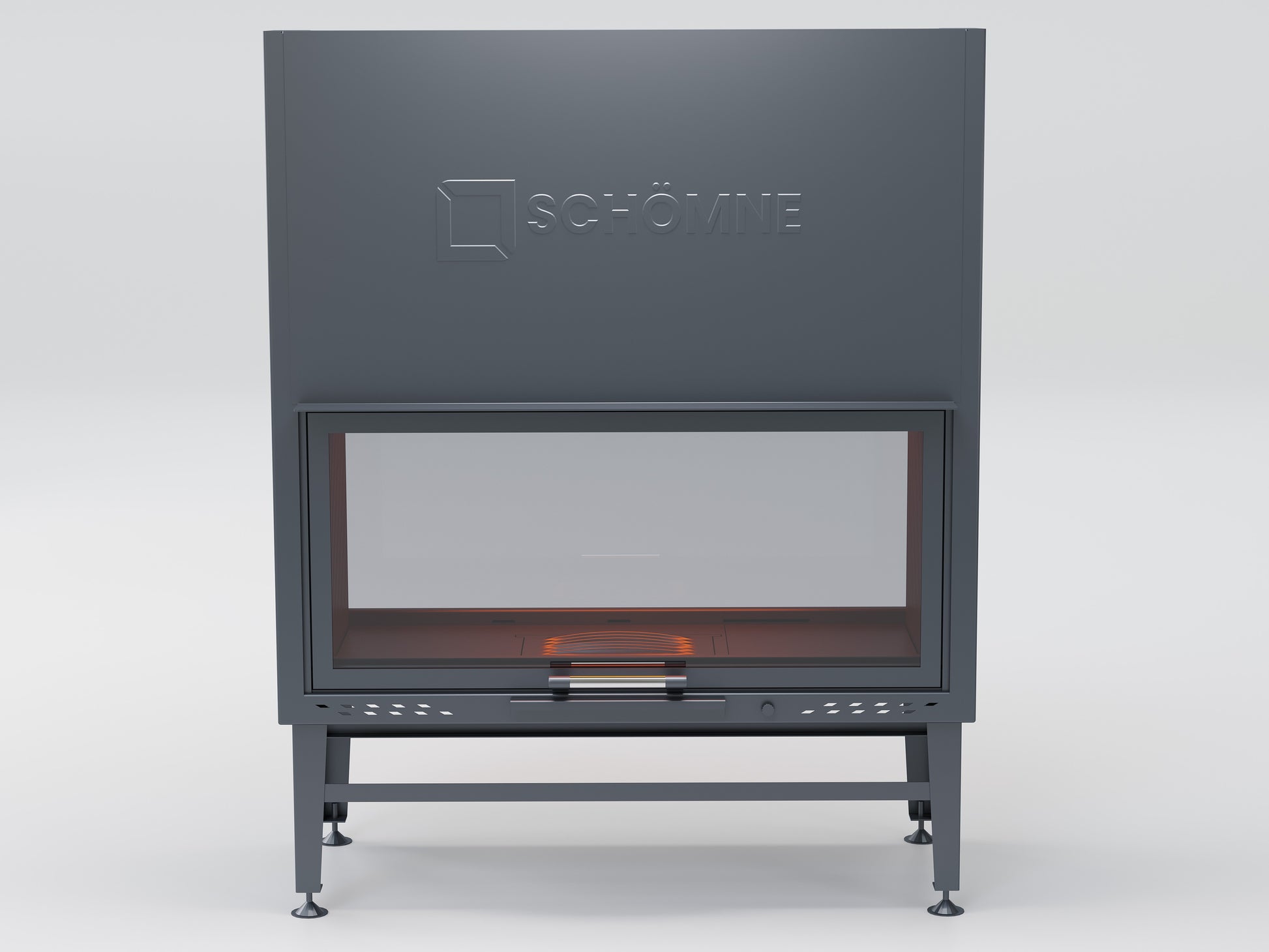

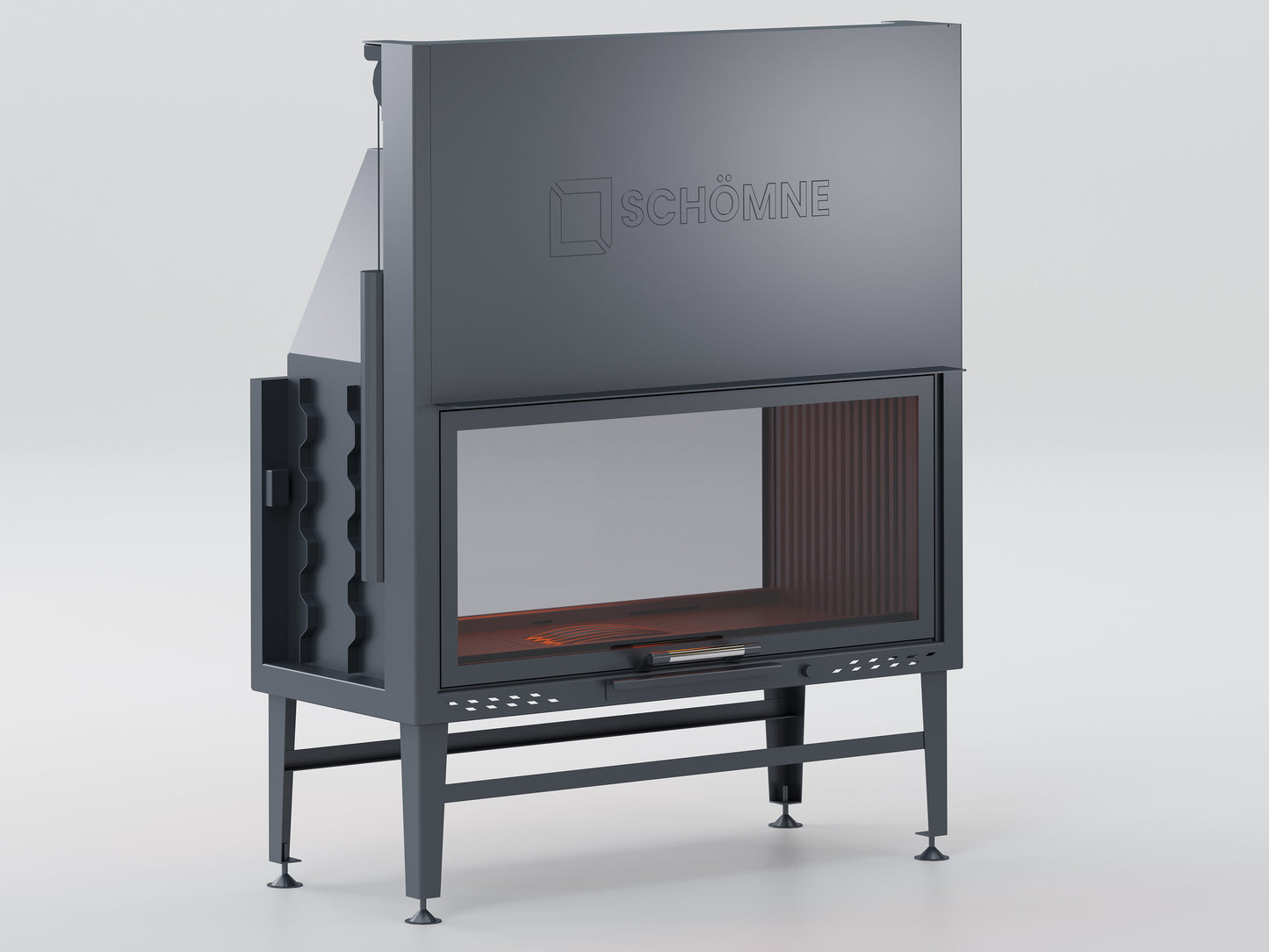

110 cm fireplace insert with a tunnel lift is installed in the wall separating two rooms, and the flame is visible from both sides. With a heating power of 20.9 kW, it easily heats an area of approximately 230 m². Its 110 cm width is suitable for medium-sized living rooms and lounges; the glass door opens by lifting upwards. You can contact our WhatsApp line for information on the price with installation.


Production Standard           : ISO 9001
Heating Capacity       : 20.9 kW
Capacity Range         :
10.5 - 26.4 kW
CO Ratio                     : 1.1 %
Heating Area                 : 229.9 m²
Heating Volume              : 620.7 m³
Efficiency                          : 80.06 %
Green Flame Certificate  : Yes
Flue Damper               : Yes
Grill Mounting Point      : Optional
Max. Log Length         : 90 cm
Flue Diameter                    : 195 mm
Dimensions                        : 1120x1415x566
Weight                         : 169 kg
Warranty Period              : 2 Years
Place of Production                 : Turkey

Product Dimensions

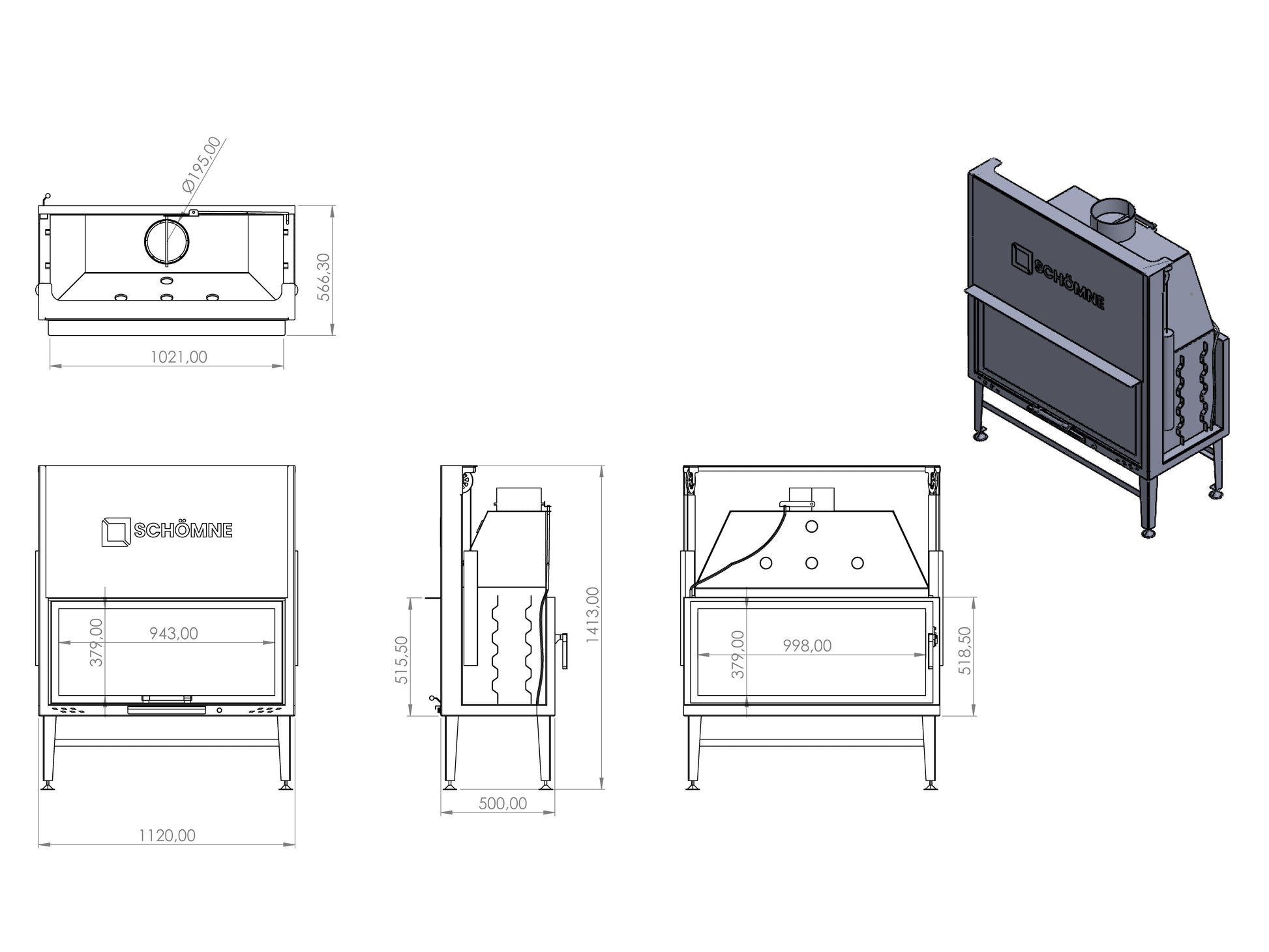

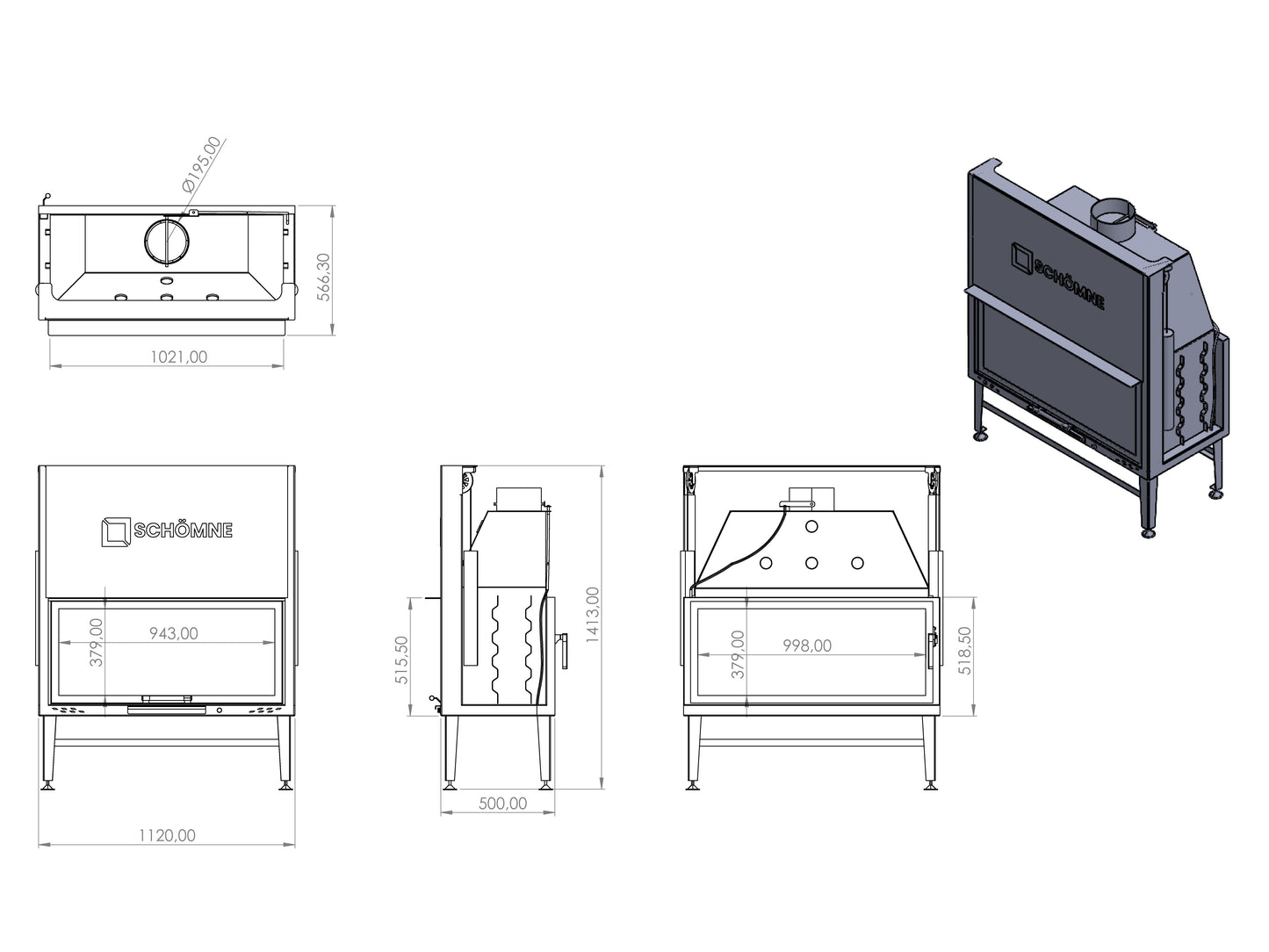

Detailed dimensions are clearly stated in the product photos and technical drawings.

Packaging to International Standards
As Dodok Home, we carefully package all our fireplace models to deliver them safely and without damage. We use 8 mm thick plywood and styrofoam protection on glass surfaces, and wrap all products in shrink wrap to prevent deformation during transport. This way, even the most delicate parts reach you without any issues.

Cargo & Shipping
Our products are shipped safely to all parts of Turkey through contracted professional logistics companies and freight companies.

Installation and Assembly Service
Our products are shipped as a fireplace insert. Installation and assembly are the responsibility of the customer. However, we also offer installation and assembly services throughout Turkey. You can contact us for detailed information and to schedule an appointment.

User Guide and Safe Burning Instructions
Carefully reviewing the user manual provided with the product is of great importance for the safety and efficiency of fireplace use. Our company accepts no responsibility for use contrary to the instructions. You can also easily access up-to-date information and burning instructions on our website.

Warranty
All Dodok Home fireplace products are covered by a 5-year warranty against manufacturing and workmanship defects, starting from the invoice date.
