170 Tunnel Elevator Fireplace Chamber

Name: 170 Tunnel Elevator Fireplace Chamber
Brand: Dodok Home
SKU: SCH_ELG_170TNL
Price: 102050.00 TRY
Availability: InStock

102,050.00TL

~~112,255.00TL~~ 102,050.00TL

Sale Sold out

Taxes included. Shipping calculated at checkout.

ℹ️ PRICES ARE VALID ONLY FOR THE FIREBOX (BURNER) '' You can contact us for pricing including installation. ''

Product Detail

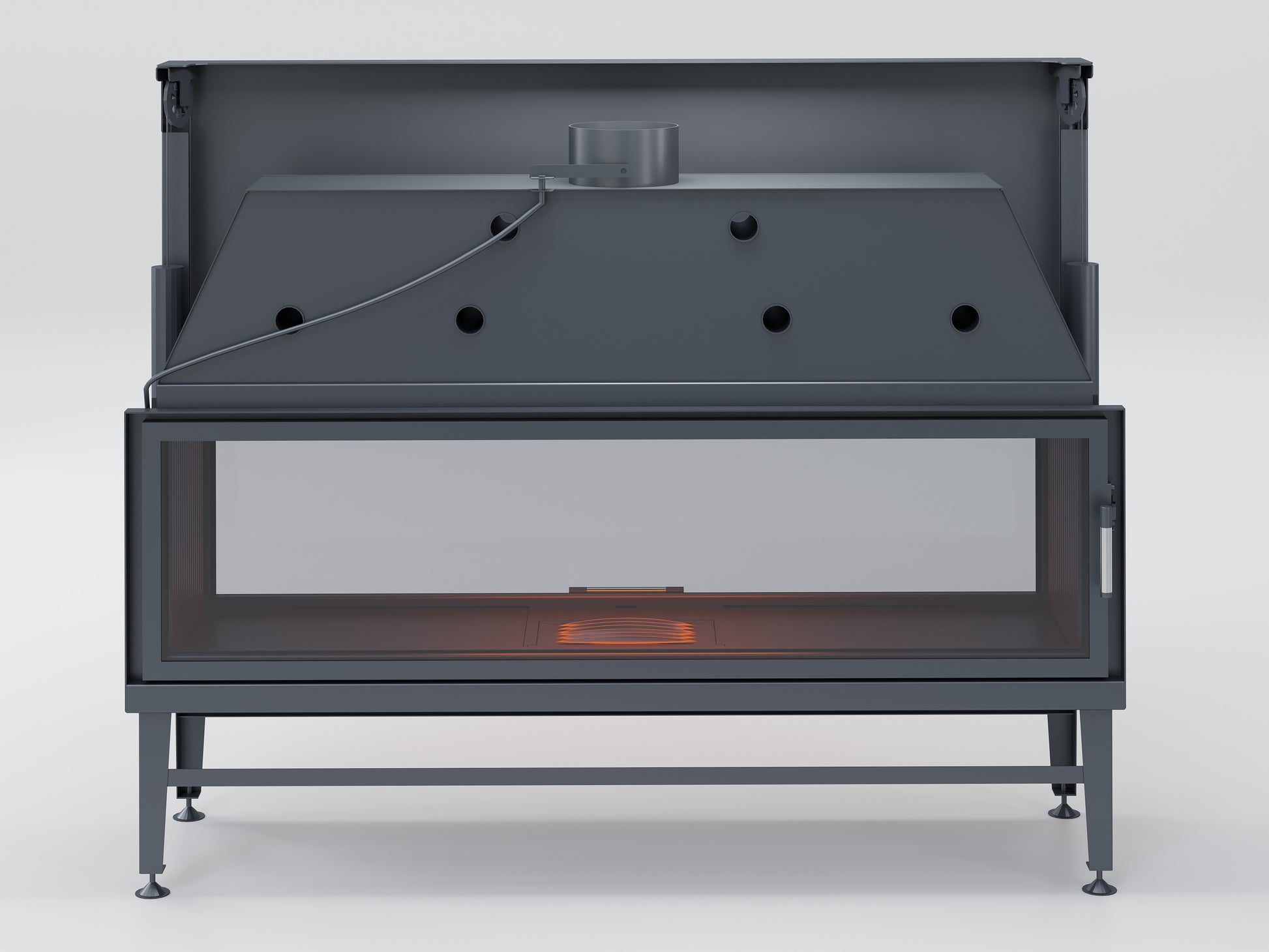

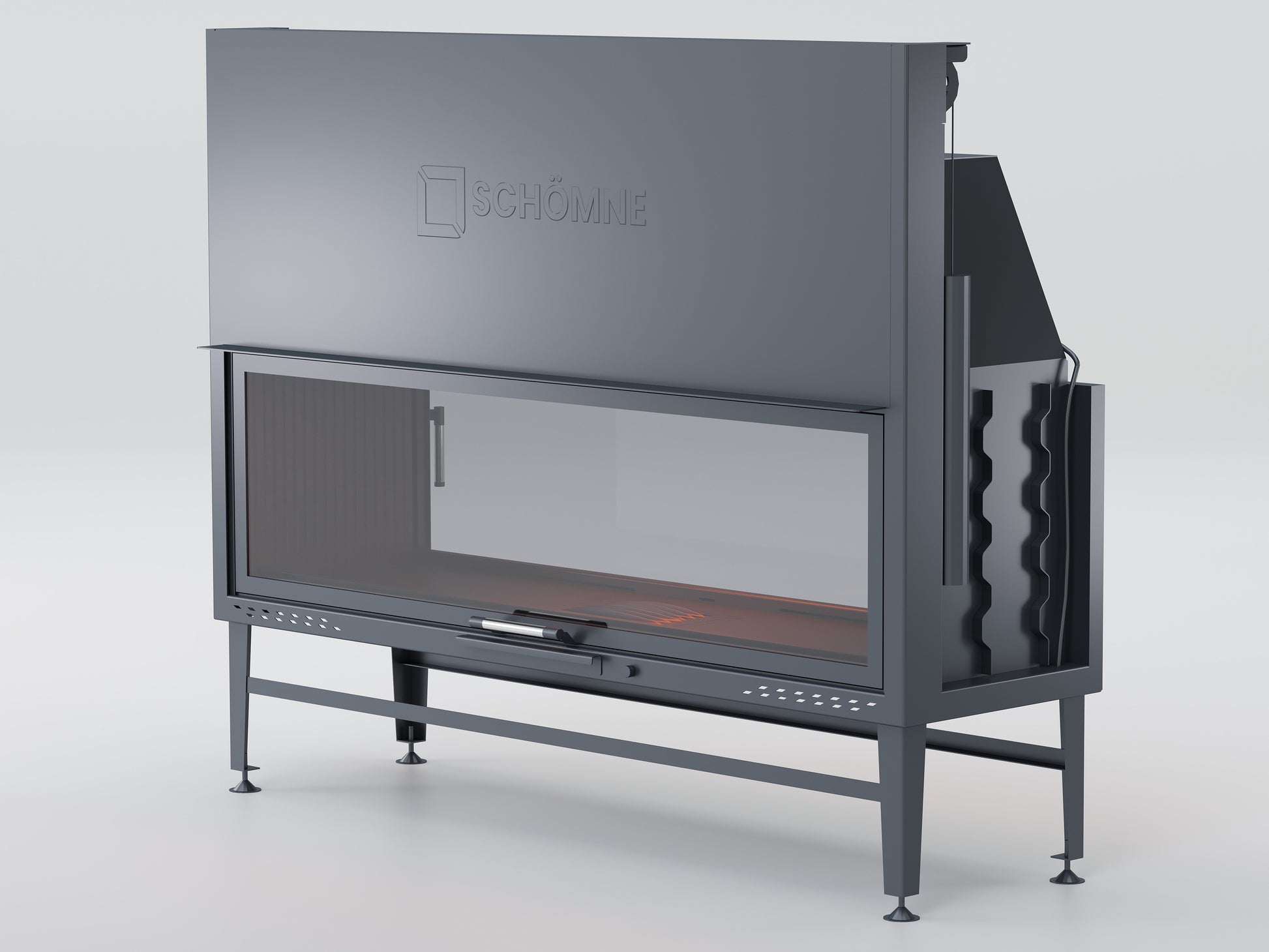

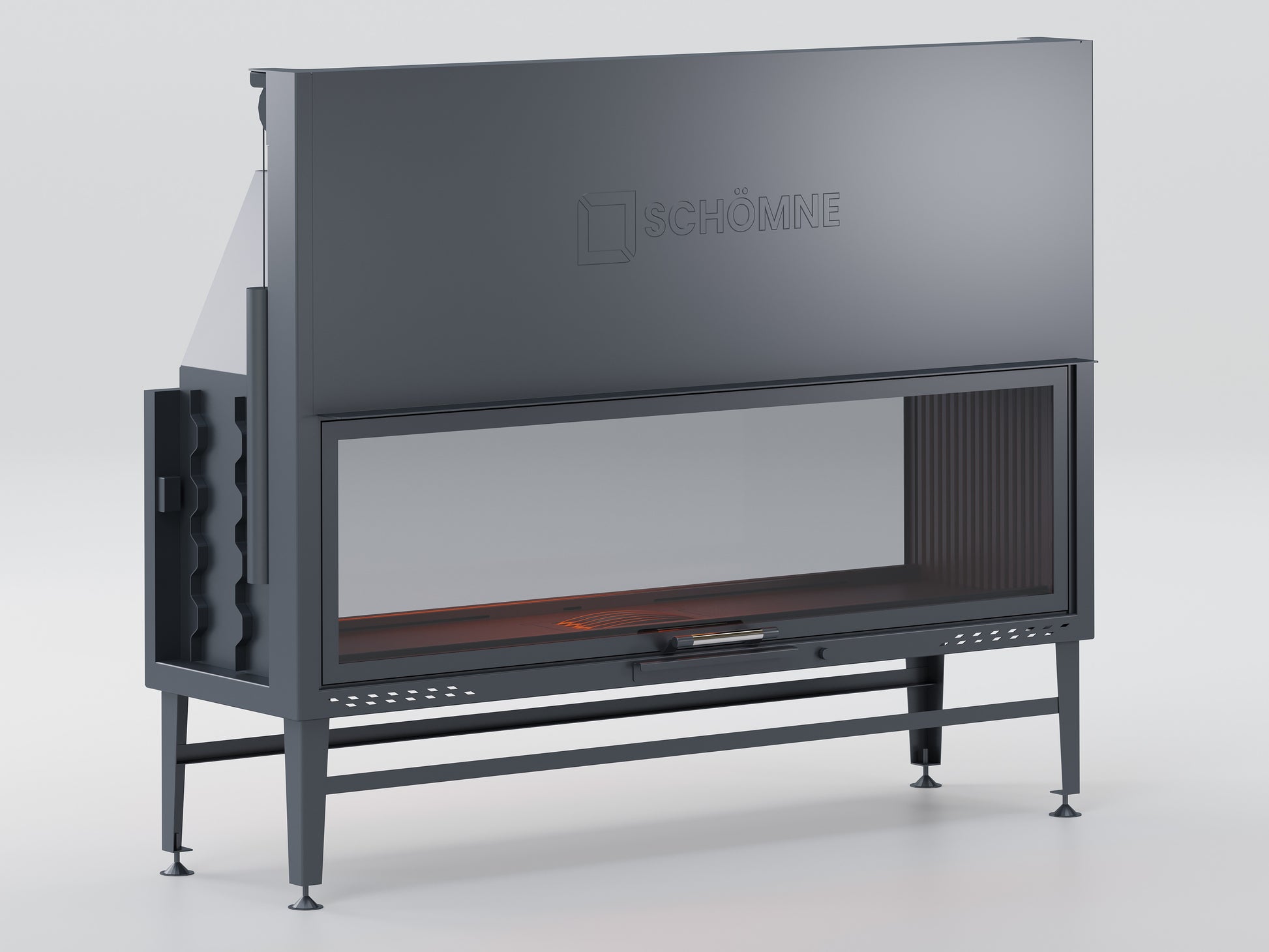

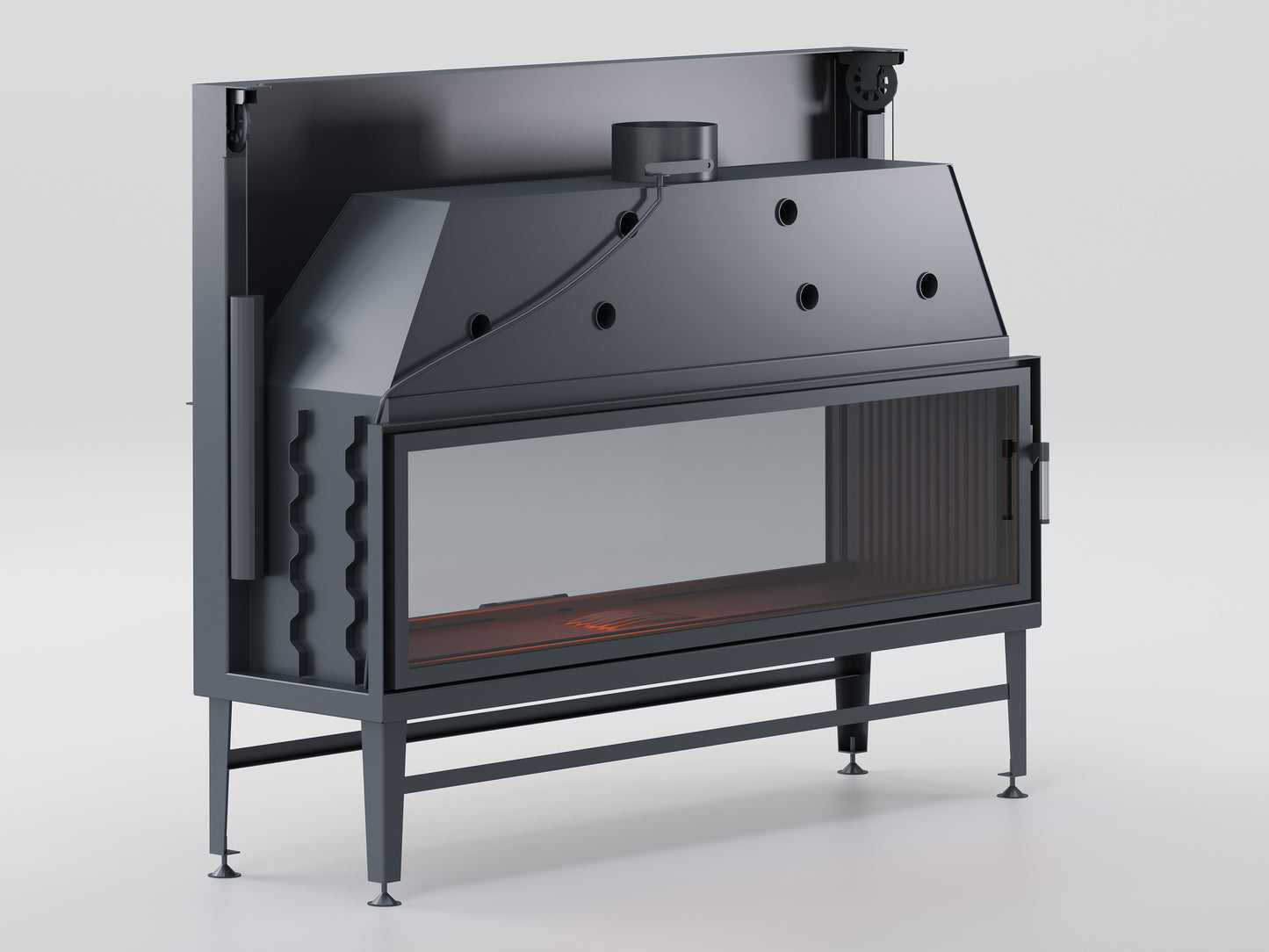

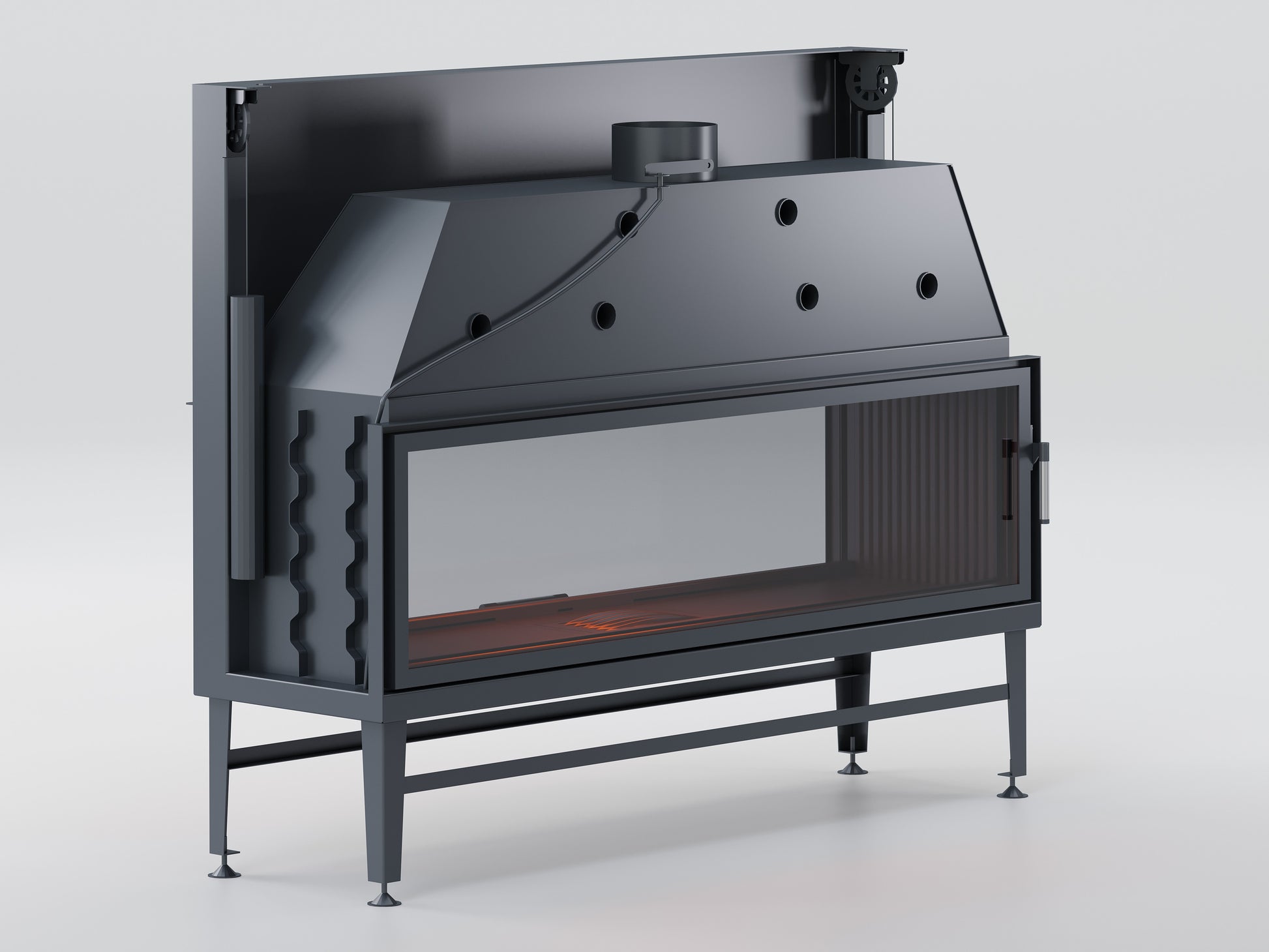

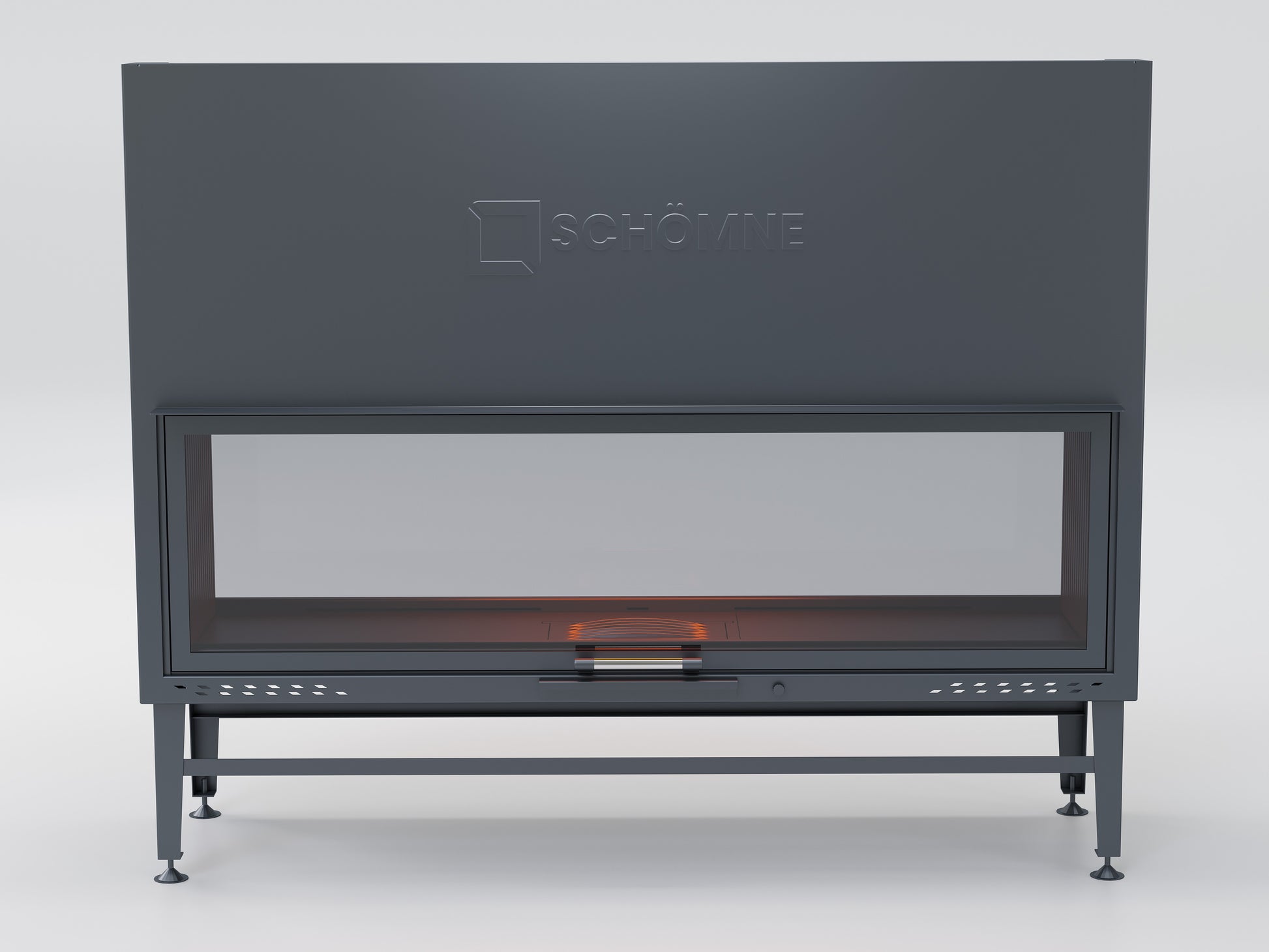

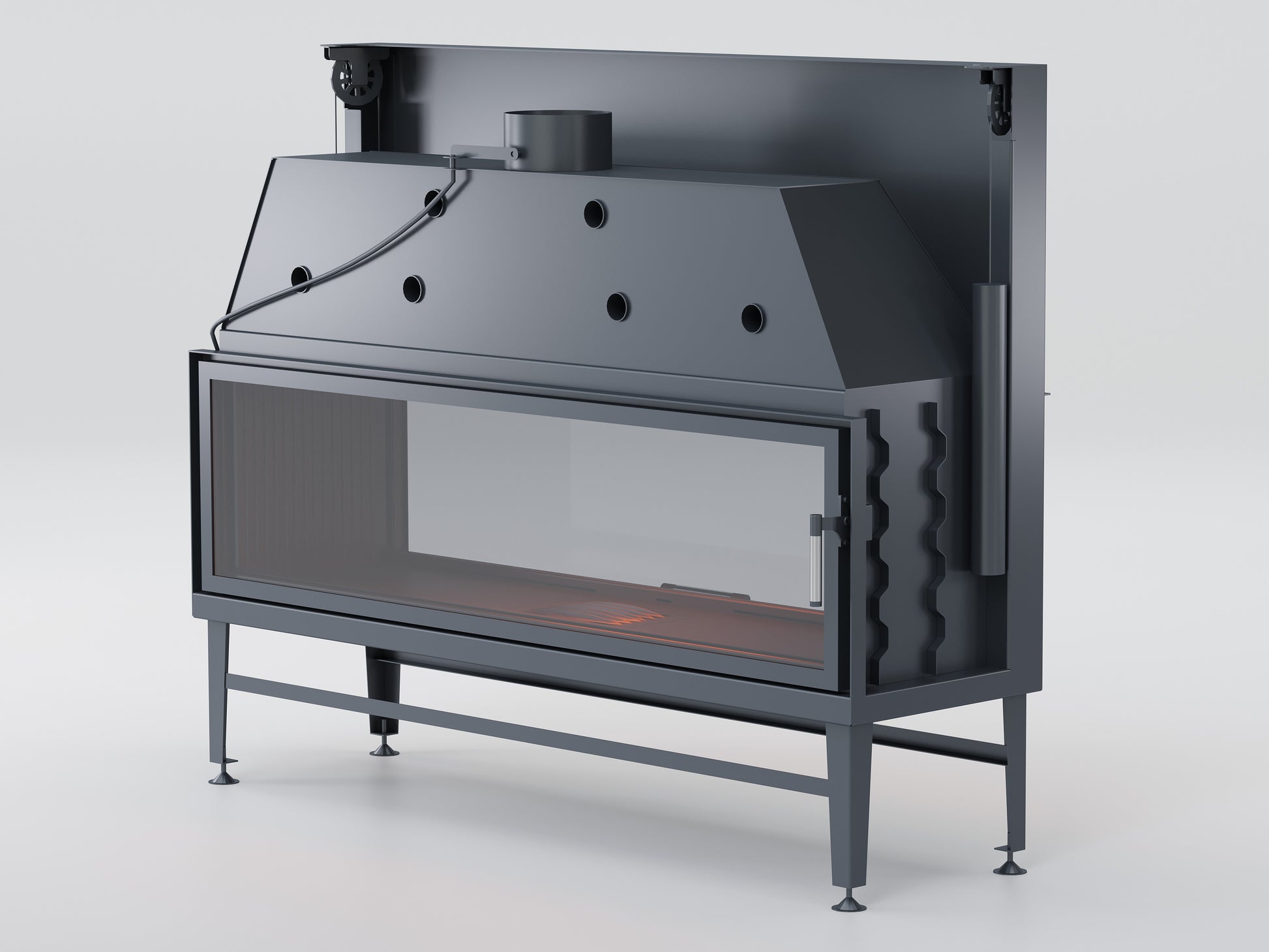

The 170 cm tunnel guillotine fireplace insert is installed into a wall separating two rooms, allowing the flames to be visible from both sides. With a 38.3 kW heating power, it comfortably heats an area of approximately 421 m². Its 170 cm width is suitable for very large lounges, villas, and country houses; the glass door opens by sliding upwards. We can determine the appropriate dimensions for your space together.

Production Standard : ISO 9001

Heating Capacity : 38.3 kW
Capacity Range : 19.1 - 48 kW

CO Ratio : 1.09 %

Heating Area : 421.1 m²

Heating Volume : 1136.9 m³

Efficiency : 75.5 %

Flamme Verte Certification : Yes

Flue Damper : Yes

Grill Mounting Slot : Optional

Max. Log Length : 160 cm

Flue Diameter : 245 mm

Dimensions : 1720x1415x566

Weight : 227 kg

Warranty Period : 2 Years

Place of Production : Turkey

Product Dimensions

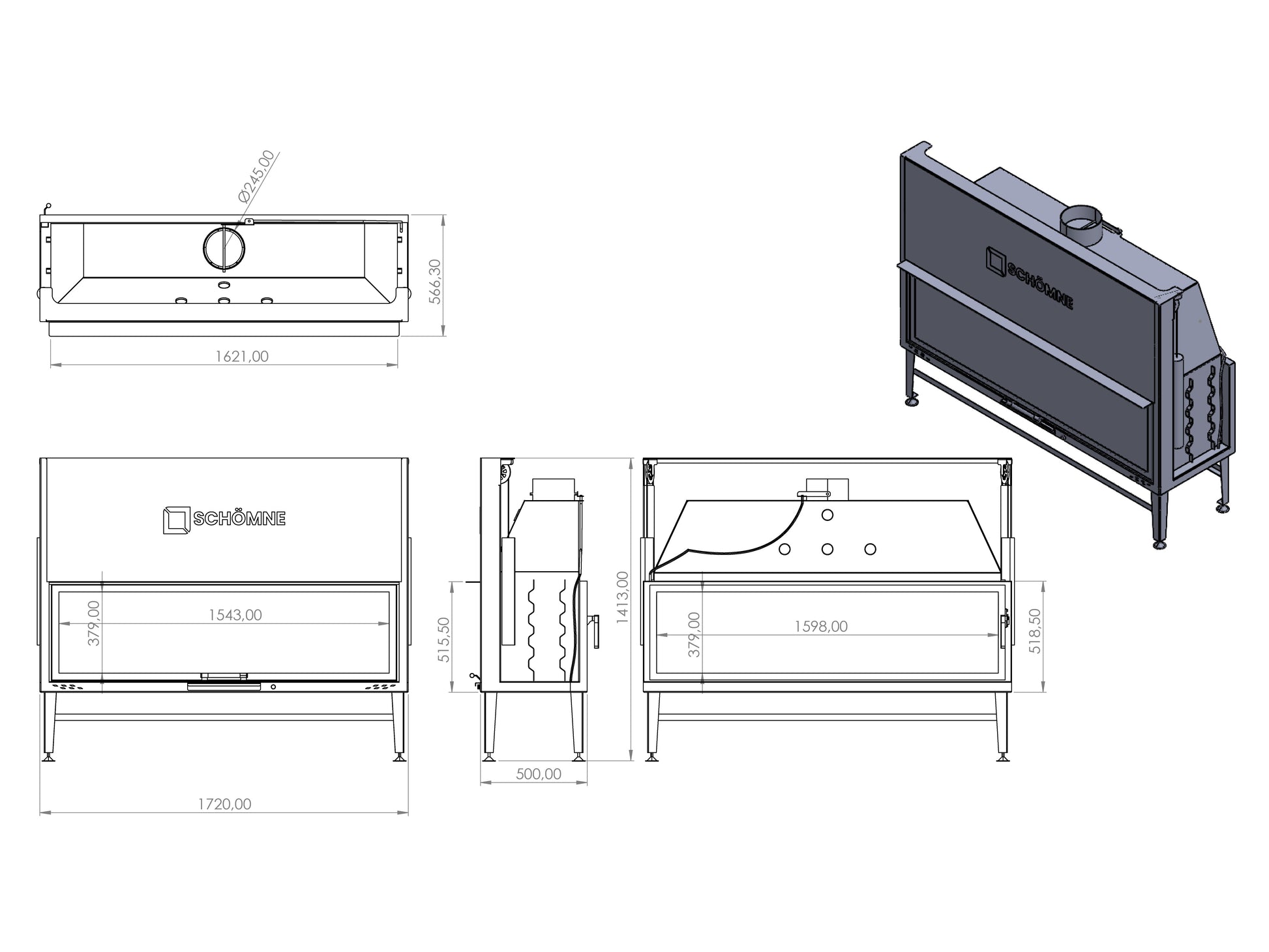

Detailed dimensions are clearly stated in the product photos and technical drawings.

International Packaging Standards
As Dodok Home, we pack all our fireplace models with care to ensure they are delivered safely and without damage. We use 8 mm thick plywood and styrofoam protection for glass surfaces, and wrap all products in shrink stretch to prevent any deformation during transport. This ensures that even the most delicate parts reach you without any issues.

Shipping & Logistics
Our products are safely shipped throughout Turkey via contracted professional logistics companies and warehouses.

Installation and Assembly Service
Our products are shipped as fireplace inserts. Installation and assembly are the responsibility of the customer. However, we do offer installation and assembly services throughout Turkey. You can contact us for detailed information and appointments.

User Guide and Safe Burning Instructions
Carefully reviewing the user manual provided with the product is of great importance for safety and efficiency in fireplace usage. Our company does not accept responsibility for uses contrary to the instructions. You can also easily access current information and burning instructions on our website.

Warranty
All Dodok Home fireplace products are guaranteed for 5 years from the date of invoice against manufacturing and workmanship defects.
