190 cm Tunnel Elevator Fireplace Chamber

Name: 190 cm Tunnel Elevator Fireplace Chamber
Brand: Dodok Home
SKU: SCH_ELG_190TNL
Price: 110400.00 TRY
Availability: InStock

110,400.00TL

~~121,440.00TL~~ 110,400.00TL

Sale Sold out

Taxes included. Shipping calculated at checkout.

ℹ️ PRICES ARE VALID ONLY FOR THE FIREBOX (BURNER) '' You can contact us for pricing including installation. ''

Product Details

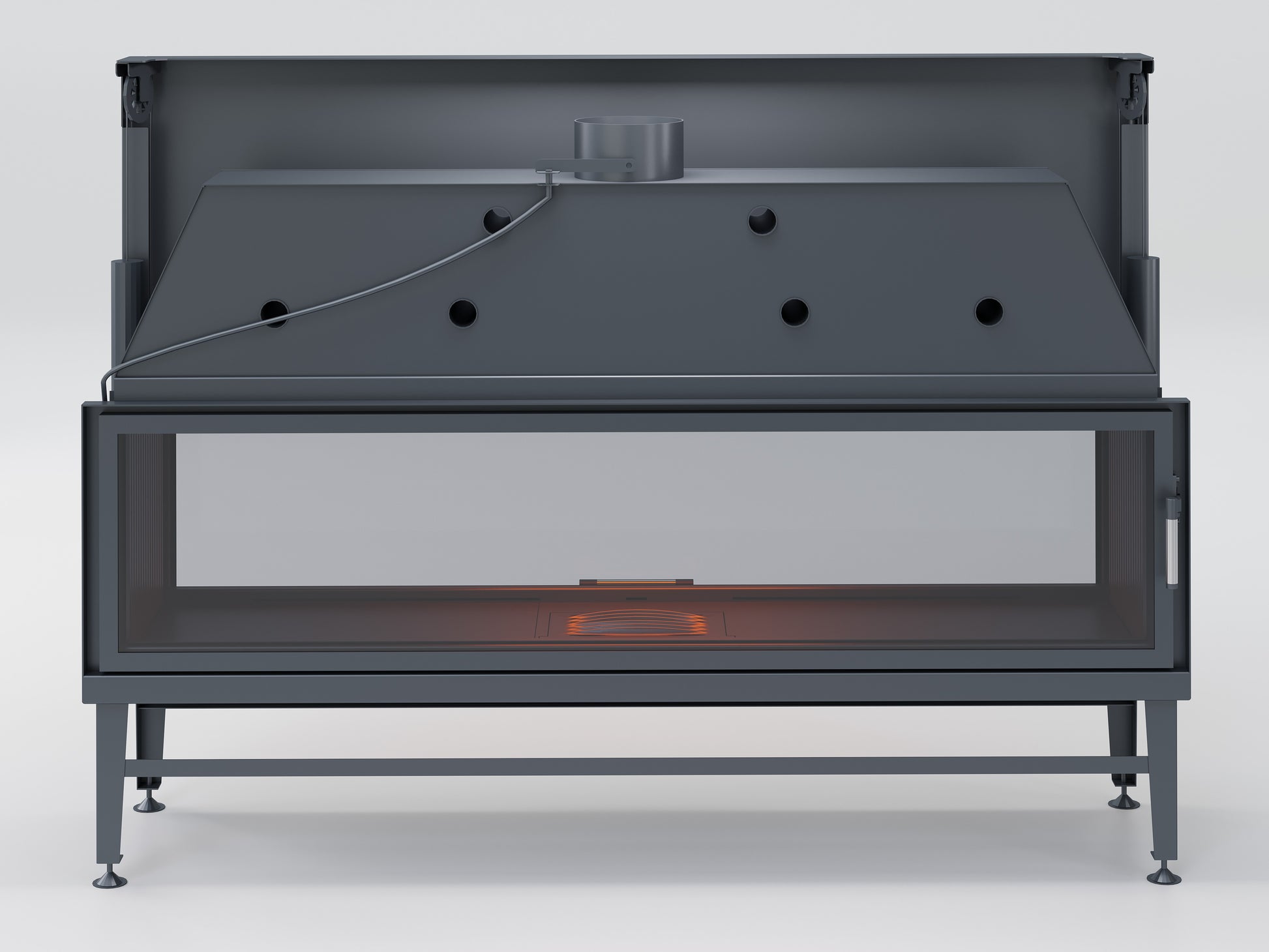

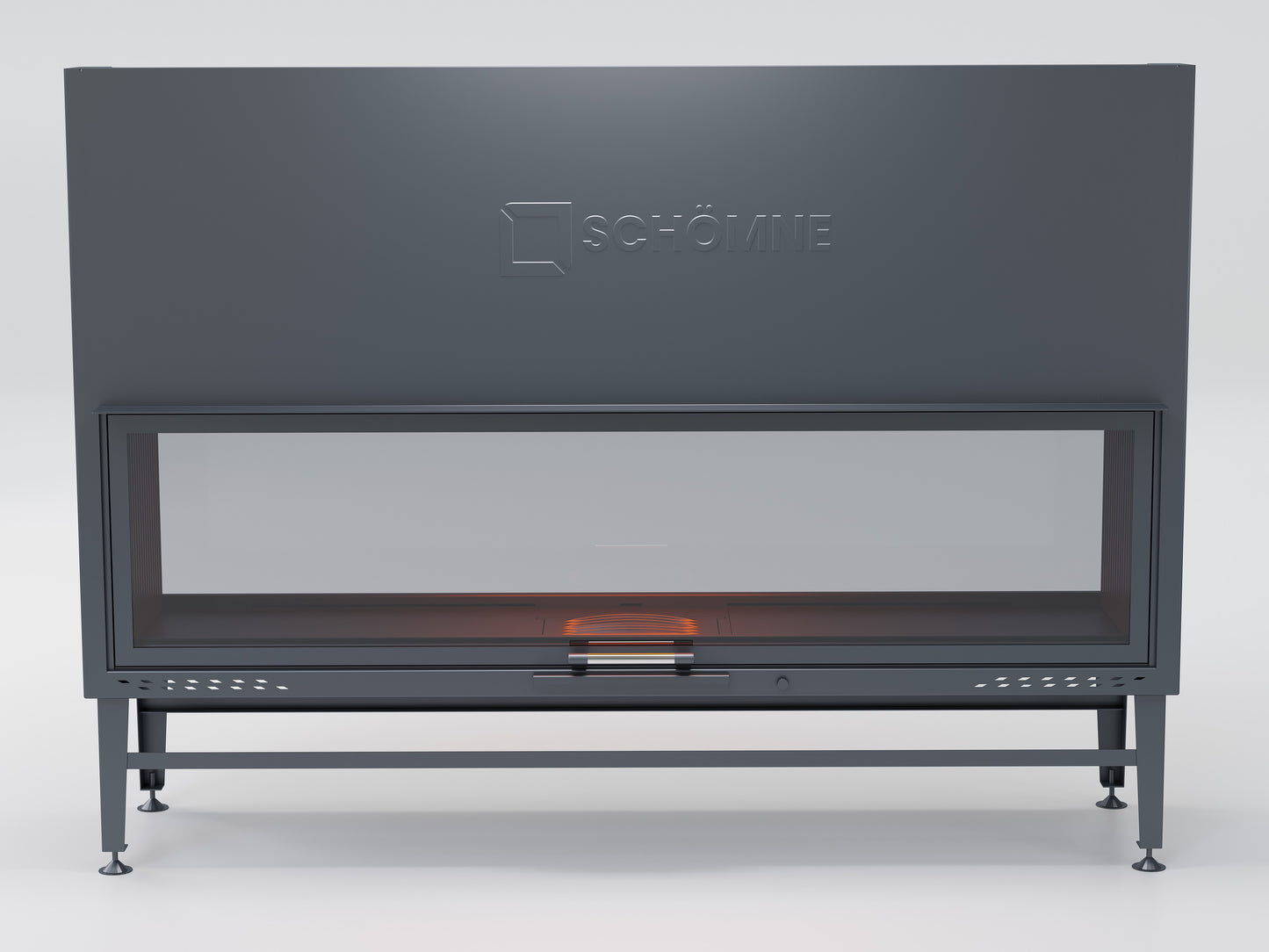

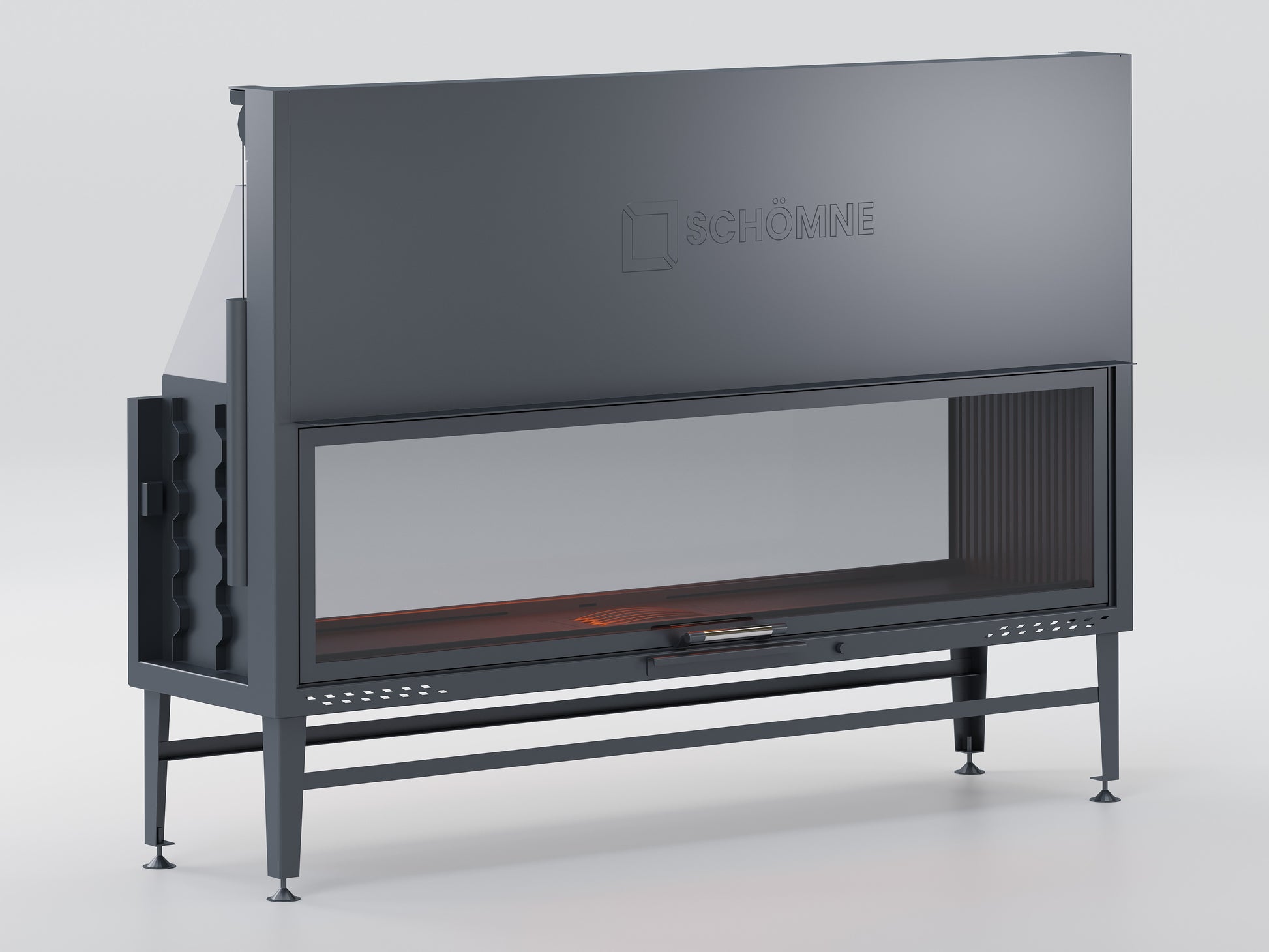

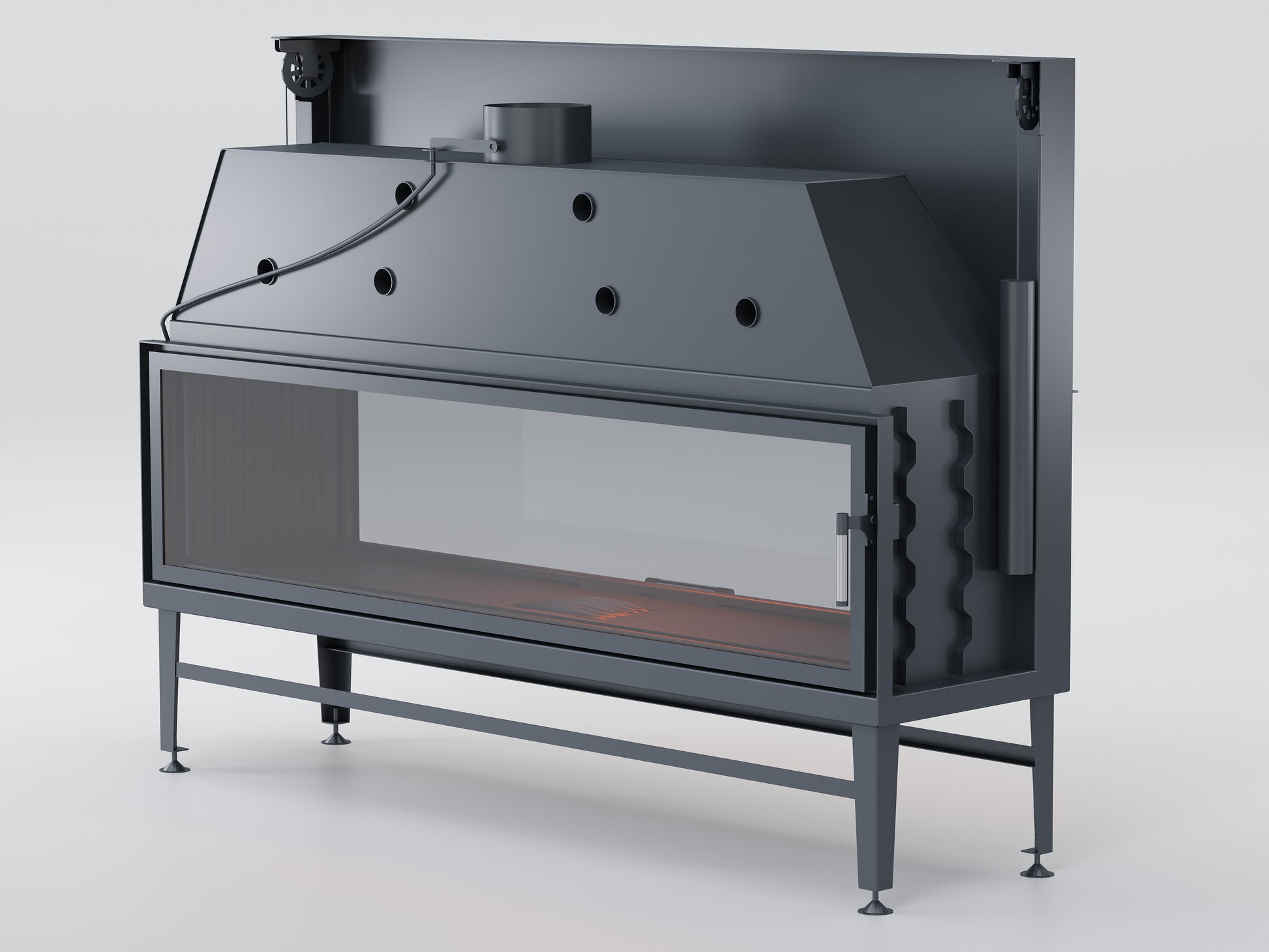

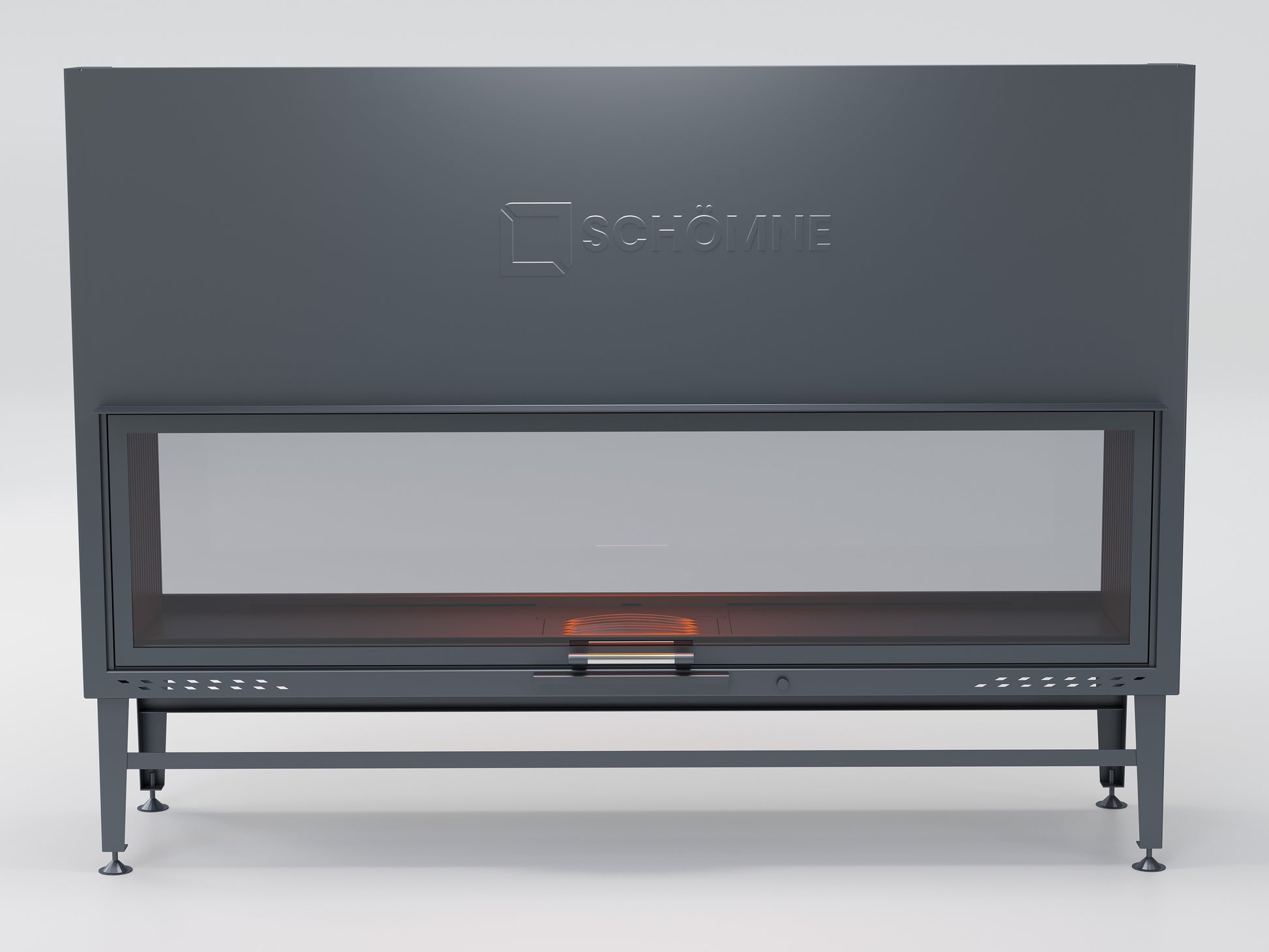

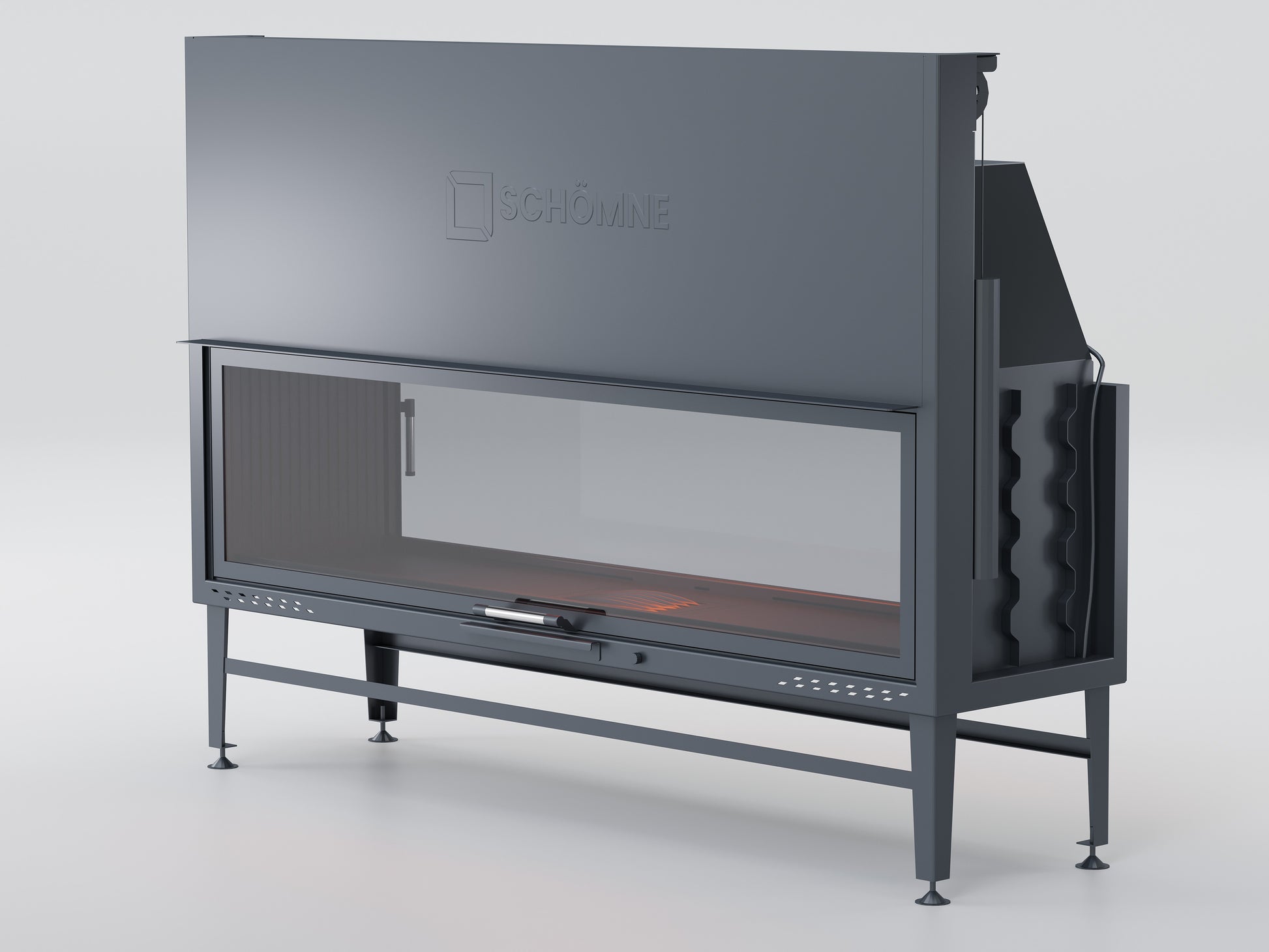

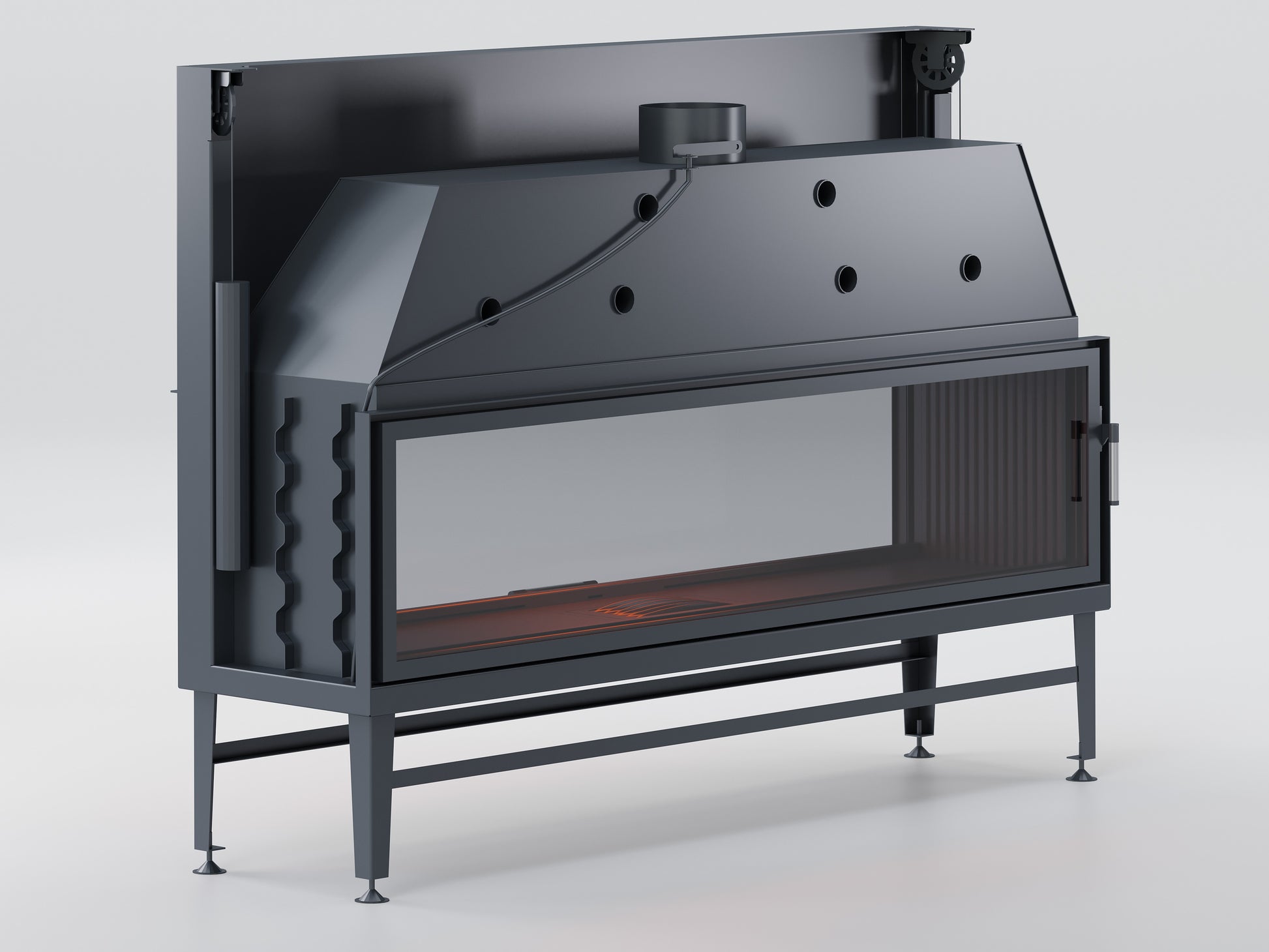

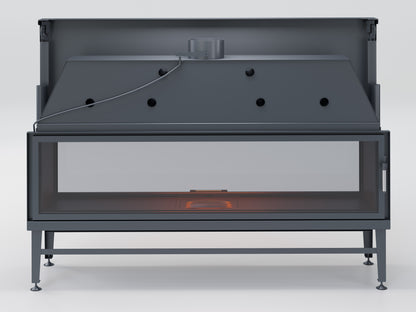

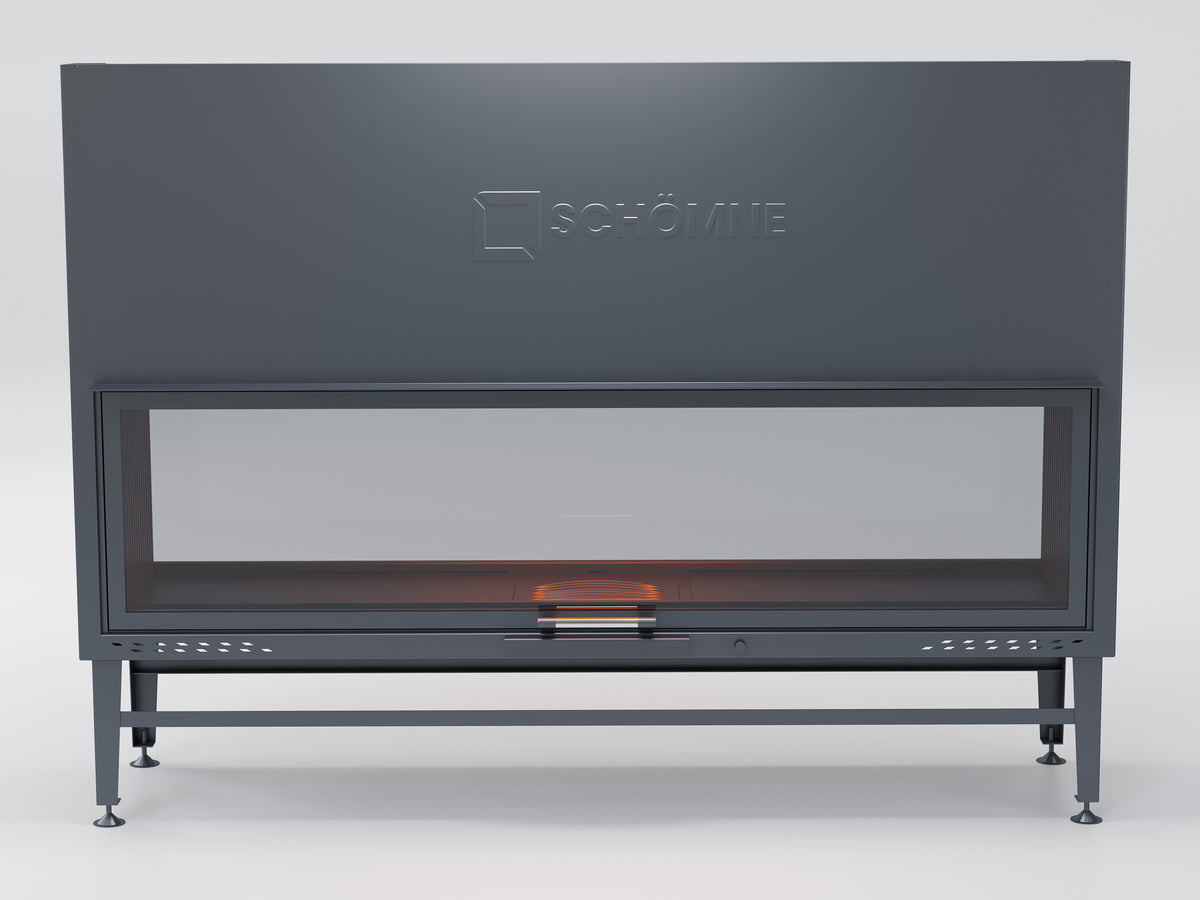

The 190 cm tunnel guillotine fireplace insert is installed into a wall separating two rooms, allowing the flames to be viewed from both sides. With a heating power of 44 kW, it is suitable for an area of approximately 484 m². Its 190 cm width is ideal for very spacious living rooms, villas, and country houses; the glass door opens by lifting upwards. Contact us for current fireplace prices and installation inquiries.

Production Standard : ISO 9001

Heating Capacity : 44 kW
Capacity Range : 22 - 55 kW

CO Ratio : 1.1%

Heating Area : 484 m²

Heating Volume : 1306.8 m³

Efficiency : 75.5%

Green Flame Certificate : Yes

Flue Damper : Yes

Grill Mounting Slot : Optional

Max. Log Length : 180 cm

Flue Diameter : 245 mm

Dimensions : 1920x1415x566

Weight : 247 kg

Warranty Period : 2 Years

Place of Production : Turkey

Product Dimensions

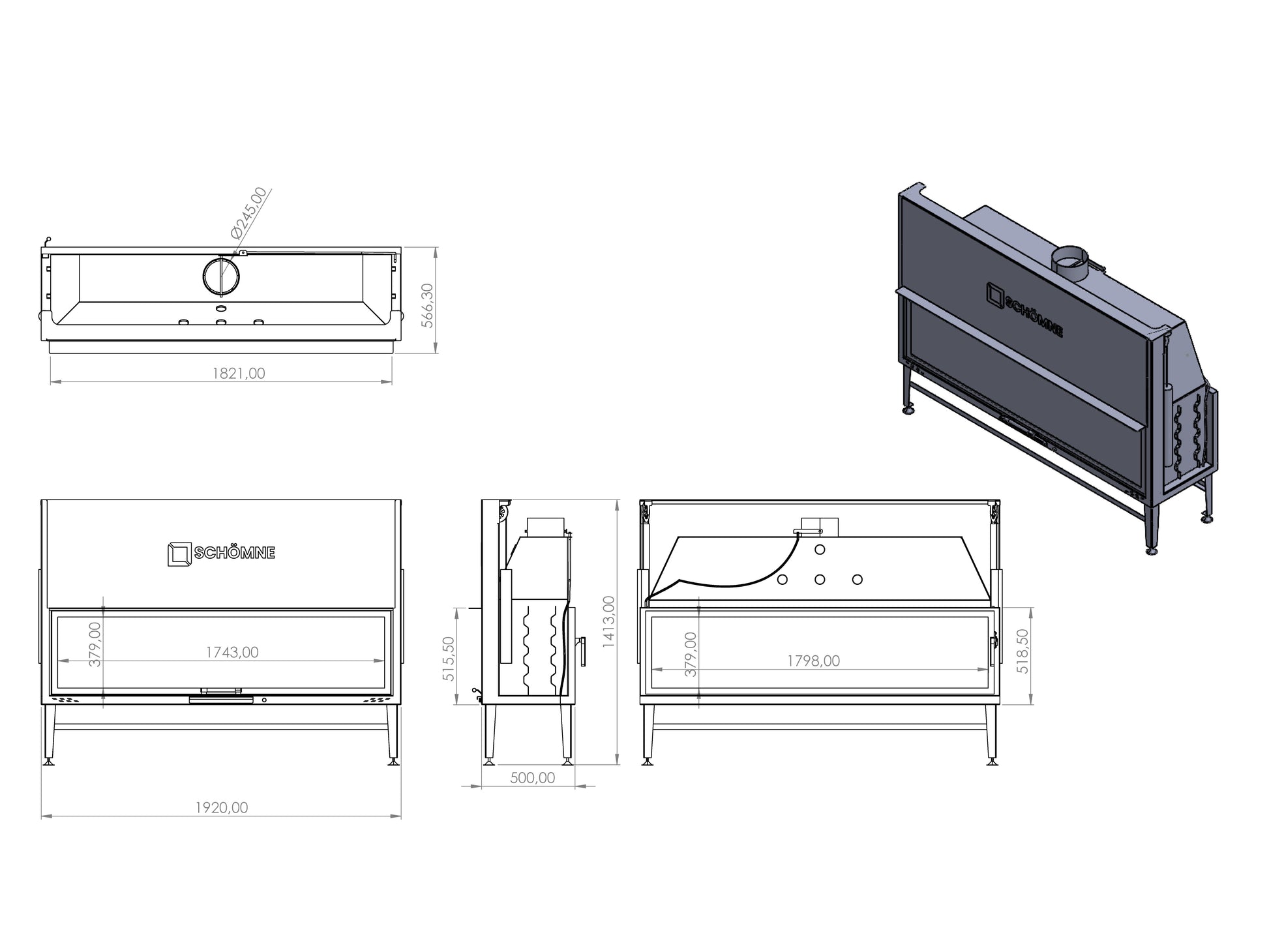

Detailed dimensions are clearly specified in the product photos and technical drawings.

International Standard Packaging
At Dodok Home, we carefully package all our fireplace models to ensure they are delivered safely and without damage. We use 8 mm thick plywood and styrofoam protection for glass surfaces, and wrap all products in shrink stretch film to prevent any deformation during transit. This ensures that even the most delicate parts reach you in perfect condition.

Cargo & Shipping
Our products are shipped safely to every corner of Turkey via contracted professional logistics companies and warehouses.

Installation and Assembly Service
Our products are shipped as fireplace inserts. Installation and assembly are the responsibility of the customer. However, we do offer installation and assembly services across Turkey. You can contact us for detailed information and to schedule an appointment.

User Manual and Safe Burning Instructions
Reviewing the user manual provided with the product is of great importance for the safety and efficiency of your fireplace usage. Our company does not accept responsibility for uses contrary to the instructions. You can easily access current information and burning instructions on our website.

Warranty
All Dodok Home fireplace products are guaranteed for 5 years from the date of invoice against manufacturing and workmanship defects.
